Cortex

Run Cortex with RustFS as the S3-compatible blocks, ruler, and alertmanager storage backend.

This guide connects Cortex — the horizontally scalable Prometheus-compatible metrics backend — to RustFS through Cortex's native S3 bucket storage. You will run Cortex in single-binary mode with blocks, ruler, and alertmanager storage pointed at a RustFS bucket, push metrics with remote write, store a rule group, and verify the objects. The workflow was verified with cortexproject/cortex:v1.21.1 and rustfs/rustfs-x86-musl:v2.3.1.

You need Docker. This deployment is intended for local integration testing, not production.

Architecture

Cortex stores every TSDB block, ruler rule group, and alertmanager configuration in object storage. Pointing the s3 backend at RustFS makes the bucket the single source of truth for all tenant data.

Create the Cortex config

Create the config file, replacing all connection placeholders:

cortex.yaml

target: all
auth_enabled: false

server:
  http_listen_port: 9009

distributor:
  shard_by_all_labels: true
  pool:
    health_check_ingesters: true

ingester:
  lifecycler:
    min_ready_duration: 0s
    final_sleep: 0s
    num_tokens: 512
    ring:
      kvstore:
        store: inmemory
      replication_factor: 1

blocks_storage:
  backend: s3
  s3: &s3
    endpoint: <your-rustfs-endpoint>:9000
    region: us-east-1
    bucket_name: cortex
    access_key_id: <your-access-key>
    secret_access_key: <your-secret-key>
    insecure: true
    bucket_lookup_type: path
  tsdb:
    dir: /data/tsdb
    block_ranges_period: [15m]
    ship_interval: 30s
  bucket_store:
    sync_dir: /data/tsdb-sync
    bucket_index:
      enabled: true

compactor:
  data_dir: /data/compactor
  sharding_ring:
    kvstore:
      store: inmemory

ruler:
  enable_api: true
  rule_path: /data/ruler

ruler_storage:
  backend: s3
  s3:
    <<: *s3

alertmanager:
  external_url: /alertmanager
  enable_api: true
  data_dir: /data/alertmanager

alertmanager_storage:
  backend: s3
  s3:
    <<: *s3

Cortex names the bucket field bucket_name and controls addressing with bucket_lookup_type: path. insecure: true allows the plain-HTTP endpoint. The block_ranges_period and ship_interval values shorten the block cycle so the test produces objects quickly; keep the defaults in production.

Run Cortex

Create the bucket and start Cortex on the same Docker network as RustFS:

rc mb rustfs/cortex

docker run -d --name cortex --network oo-rustfs_default -p 9009:9009 \
  -v "$PWD/cortex.yaml":/etc/cortex/cortex.yaml:ro \
  -v /opt/cortex/data:/data \
  cortexproject/cortex:v1.21.1 -config.file=/etc/cortex/cortex.yaml

ts=... caller=cortex.go:469 level=info msg="Cortex started"

Push metrics and rules

Start a Prometheus that scrapes itself and remote-writes into Cortex:

prometheus.yml

global:
  scrape_interval: 5s
scrape_configs:
  - job_name: self
    static_configs:
      - targets: ["localhost:9090"]
remote_write:
  - url: http://cortex:9009/api/v1/push

docker run -d --name prom-writer --network oo-rustfs_default \
  -v "$PWD/prometheus.yml":/etc/prometheus/prometheus.yml:ro \
  prom/prometheus:latest --config.file=/etc/prometheus/prometheus.yml

Store a rule group through the ruler API:

cat > rules.yaml << "EOF"
name: rustfs-demo
rules:
  - alert: RustFSAlwaysFiring
    expr: vector(1)
    labels:
      severity: demo
    annotations:
      summary: "demo alert stored in RustFS"
EOF

curl -s -o /dev/null -w "%{http_code}\n" \
  -X POST http://localhost:9009/api/v1/rules/rustfs-demo \
  --data-binary @rules.yaml -H "Content-Type: application/yaml"

Query the ingested series back:

curl -s "http://localhost:9009/prometheus/api/v1/query?query=up"

{"status":"success","data":{"resultType":"vector","result":[{"metric":{"__name__":"up",...},"value":[...,"1"]}]}}

Verify objects in RustFS

List the bucket prefixes:

rc ls rustfs/cortex/ -r

The ruler config landed immediately, and the ingester shipped two TSDB blocks (each with chunks, index, and meta.json):

fake/01M35WE4B1G6RRKHRV0HSGADY1/chunks/000001
fake/01M35WE4B1G6RRKHRV0HSGADY1/index
fake/01M35WE4B1G6RRKHRV0HSGADY1/meta.json
fake/01M35WWS2YCC7FBK1JSBKFQGRP/chunks/000001
fake/01M35WWS2YCC7FBK1JSBKFQGRP/index
fake/01M35WWS2YCC7FBK1JSBKFQGRP/meta.json
rules/fake/cnVzdGZzLWRlbW8=/cnVzdGZzLWRlbW8=

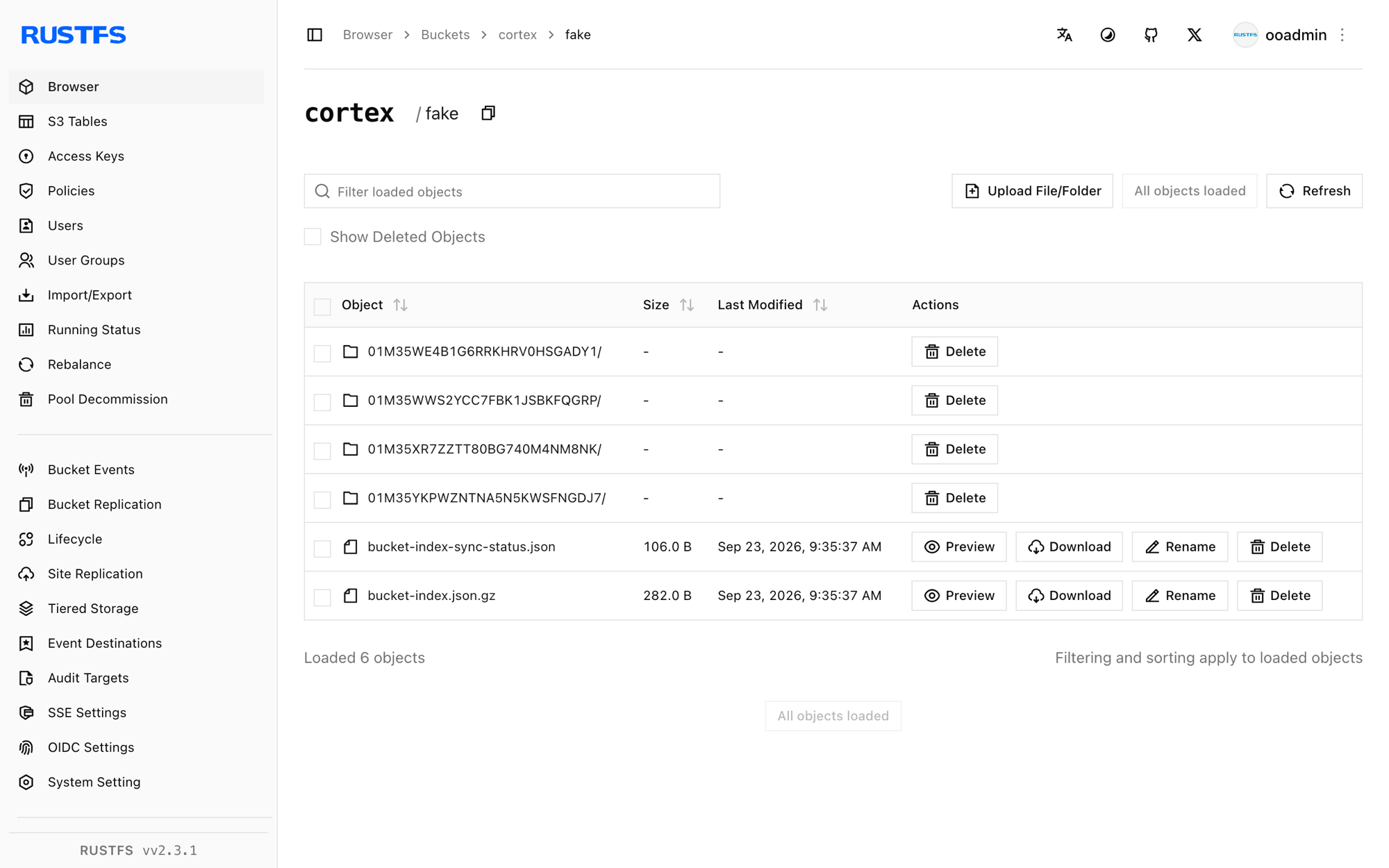

Cortex blocks and rules stored in the RustFS Console

Stop or reset

To tear down the demo while keeping the bucket objects:

docker rm -f cortex prom-writer

To delete the stored data:

rc rm rustfs/cortex/ --recursive --force

Review S3 compatibility notes before adopting additional Cortex storage options.
Create dedicated production credentials with Access Key Management.
Combine Cortex with Thanos when you need block storage for long-term Prometheus data as well.
