Apache Hudi

This guide connects Apache Hudi — the transactional data lake platform — to RustFS as its copy-on-write table store. You will run Spark with the Hudi bundle, write a table to the s3a:// location inside a RustFS bucket, read it back, and verify the table files. The workflow was verified with apache/spark:3.5.6, hudi-spark3.5-bundle_2.12:0.15.0, hadoop-aws:3.3.4, and rustfs/rustfs-x86-musl:v2.3.1.

You need Docker. This deployment is intended for local integration testing, not production.

Architecture

Hudi stores the .hoodie/ timeline, commit files, and Parquet data blocks under the table path in the bucket. Reads resolve the latest table snapshot from the timeline, so every write and query goes through the S3 API.

Run the Spark write

Hudi requires the Kryo serializer and the s3a credentials as Hadoop properties. The following spark-shell session creates a non-partitioned table in my-bucket — replace all connection placeholders:

import org.apache.spark.sql.SaveMode

val df = Seq((1, "a"), (2, "b"), (3, "c")).toDF("id", "name")
df.write.format("hudi")
  .option("hoodie.table.name", "events")
  .option("hoodie.datasource.write.recordkey.field", "id")
  .option("hoodie.datasource.write.precombine.field", "name")
  .option("hoodie.datasource.write.partitionpath.field", "")
  .mode(SaveMode.Overwrite)
  .save("s3a://my-bucket/hudi-demo/events")

val back = spark.read.format("hudi").load("s3a://my-bucket/hudi-demo/events")
back.select("id", "name").show()

docker run --rm --network oo-rustfs_default \
  -v "$PWD/hudi_test.scala":/tmp/hudi_test.scala \
  apache/spark:3.5.6 /opt/spark/bin/spark-shell \
  --packages org.apache.hudi:hudi-spark3.5-bundle_2.12:0.15.0,org.apache.hadoop:hadoop-aws:3.3.4 \
  --conf spark.serializer=org.apache.spark.serializer.KryoSerializer \
  --conf spark.hadoop.fs.s3a.endpoint=http://rustfs:9000 \
  --conf spark.hadoop.fs.s3a.path.style.access=true \
  --conf spark.hadoop.fs.s3a.access.key=<your-access-key> \
  --conf spark.hadoop.fs.s3a.secret.key=<your-secret-key> \
  --conf spark.hadoop.fs.s3a.region=us-east-1 \
  --conf spark.jars.ivy=/tmp/.ivy2 \
  --conf spark.sql.shuffle.partitions=2 \
  -i /tmp/hudi_test.scala

The --packages flags download the Hudi bundle and the s3a connector on first run. The spark.jars.ivy setting avoids Ivy cache permission errors in the container. The read-back show() prints the three rows:

+---+----+
|  2|   b|
|  3|   c|
|  1|   a|
+---+----+

Verify objects in RustFS

List the table prefix:

rc ls rustfs/my-bucket/hudi-demo/ -r

The Hudi table layout appears under the table path — the .hoodie/ timeline with the commit file, plus the Parquet data block:

hudi-demo/events/.hoodie/20260922015803291.commit
hudi-demo/events/.hoodie/20260922015803291.commit.requested
hudi-demo/events/<partition>/<filegroup>/<parquet-block>

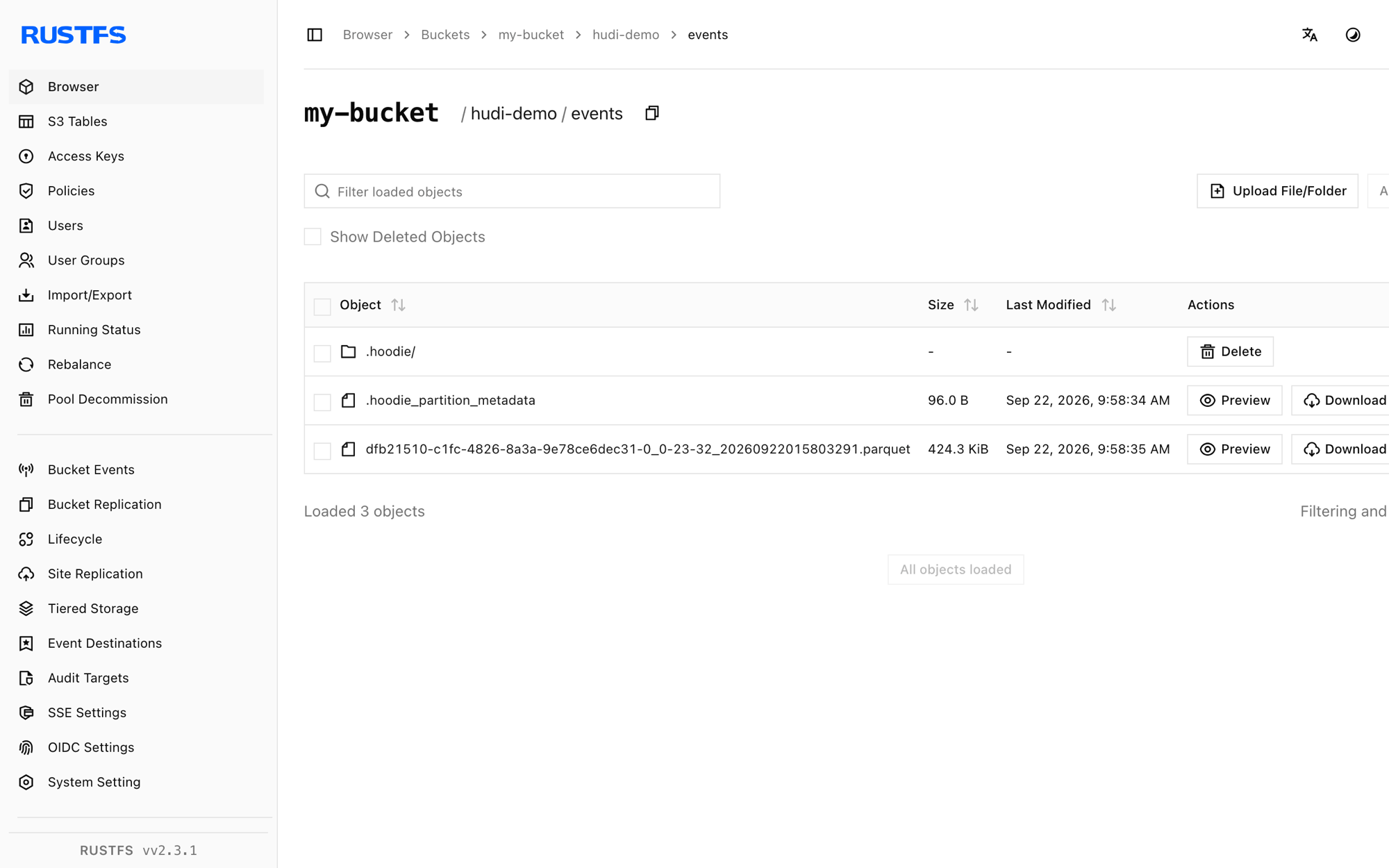

Hudi table files stored in the RustFS Console

Stop or reset

Spark runs as a one-shot client and holds no state. To delete the demo table:

rc rm rustfs/my-bucket/hudi-demo/ --recursive --force

Review S3 compatibility notes before adopting additional Hudi operations.
Create dedicated production credentials with Access Key Management.
Follow the Hudi Spark guide to add upserts, compaction, and query integrations on the same table.

Apache Hudi

Architecture

Run the Spark write

Verify objects in RustFS

Stop or reset

Troubleshooting

`hoodie only support org.apache.spark.serializer.KryoSerializer as spark.serializer`

`Partition-path field has to be non-empty` or keygenerator class errors

`NoSuchMethodError` or `ClassNotFoundException` in the Hudi write

Next steps
