Apache Flink

Read from and write CSV data stored in RustFS object storage with Apache Flink and its S3 filesystem plugin.

This guide connects Apache Flink to RustFS through Flink's S3 filesystem plugin (flink-s3-fs-hadoop). You will start a session cluster with Docker Compose, write a bounded result set to the bucket in batch mode, and read it back through Flink SQL. The workflow was verified with flink:1.20 and rustfs/rustfs-x86-musl:v2.3.1.

You need Docker with the Compose plugin. This deployment is intended for local integration testing, not production.

Architecture

The flink-s3-fs-hadoop plugin registers the s3:// scheme for Flink's filesystem connector. Endpoint, path-style addressing, plain HTTP, and credentials are configured through s3.* properties in flink-conf.yaml (passed via FLINK_PROPERTIES).

Create the project files

Create a working directory:

mkdir rustfs-flink
cd rustfs-flink

Create an environment file and replace both credential placeholders:

.env

RUSTFS_ACCESS_KEY=<your-access-key>
RUSTFS_SECRET_KEY=<your-secret-key>

Use dedicated credentials for the bucket. Do not commit .env to source control.

The S3 plugin ships inside the image under /opt/flink/opt/ and must be copied to /opt/flink/plugins/s3fs/ to load. Prepare a local directory for it:

mkdir -p s3fs
docker create --name flink-tmp flink:1.20
docker cp flink-tmp:/opt/flink/opt/flink-s3-fs-hadoop-1.20.5.jar s3fs/
docker rm flink-tmp

Create the Compose file:

compose.yaml

services:
  rustfs:
    image: rustfs/rustfs-x86-musl:v2.3.1
    environment:
      RUSTFS_ACCESS_KEY: ${RUSTFS_ACCESS_KEY}
      RUSTFS_SECRET_KEY: ${RUSTFS_SECRET_KEY}
      RUSTFS_VOLUMES: /data
      RUSTFS_ADDRESS: ":9000"
      RUSTFS_CONSOLE_ADDRESS: ":9001"
      RUSTFS_CONSOLE_ENABLE: "true"
    volumes:
      - rustfs-data:/data
    ports:
      - "9000:9000"
      - "9001:9001"
    healthcheck:
      test: ["CMD", "curl", "-sf", "http://127.0.0.1:9000/health"]
      interval: 10s
      timeout: 5s
      retries: 6
      start_period: 10s
    networks:
      - flink

  create-bucket:
    image: rustfs/rc:latest
    depends_on:
      rustfs:
        condition: service_healthy
    environment:
      RUSTFS_ACCESS_KEY: ${RUSTFS_ACCESS_KEY}
      RUSTFS_SECRET_KEY: ${RUSTFS_SECRET_KEY}
    entrypoint:
      - /bin/sh
      - -c
      - |
        until /usr/bin/rc alias set rustfs http://rustfs:9000 "$${RUSTFS_ACCESS_KEY}" "$${RUSTFS_SECRET_KEY}"; do
          echo "Waiting for RustFS..."
          sleep 2
        done
        /usr/bin/rc ls rustfs/my-bucket >/dev/null 2>&1 || /usr/bin/rc mb rustfs/my-bucket
    networks:
      - flink

  jobmanager:
    image: flink:1.20
    command: jobmanager
    environment:
      FLINK_PROPERTIES: |
        jobmanager.rpc.address: jobmanager
        rest.address: jobmanager
        rest.bind-address: 0.0.0.0
        s3.access-key: ${RUSTFS_ACCESS_KEY}
        s3.secret-key: ${RUSTFS_SECRET_KEY}
        s3.endpoint: http://rustfs:9000
        s3.path-style-access: true
    volumes:
      - ./s3fs:/opt/flink/plugins/s3fs:ro
    ports:
      - "8081:8081"
    depends_on:
      create-bucket:
        condition: service_completed_successfully
    networks:
      - flink

  taskmanager:
    image: flink:1.20
    command: taskmanager
    environment:
      FLINK_PROPERTIES: |
        jobmanager.rpc.address: jobmanager
        taskmanager.host: taskmanager
        s3.access-key: ${RUSTFS_ACCESS_KEY}
        s3.secret-key: ${RUSTFS_SECRET_KEY}
        s3.endpoint: http://rustfs:9000
        s3.path-style-access: true
    volumes:
      - ./s3fs:/opt/flink/plugins/s3fs:ro
    depends_on:
      jobmanager:
        condition: service_started
    networks:
      - flink

networks:
  flink:

volumes:
  rustfs-data:

The s3.access-key, s3.secret-key, s3.endpoint, and s3.path-style-access properties configure the S3 plugin on both the JobManager and the TaskManager.

Start the deployment

Resolve the Compose file before starting containers:

docker compose config

Start the services and wait for the bucket initializer to finish:

docker compose up -d
docker compose ps -a

Write a result set to RustFS

Create the SQL job — batch mode with the filesystem sink:

batch.sql

SET 'execution.runtime-mode' = 'batch';

CREATE TABLE sink (
  id INT,
  payload STRING
) WITH (
  'connector' = 'filesystem',
  'path' = 's3://my-bucket/flink-out/',
  'format' = 'csv'
);

INSERT INTO sink
  VALUES (1, 'alpha'), (2, 'bravo'), (3, 'charlie'), (4, 'delta'), (5, 'echo');

Submit it through the SQL client inside the JobManager:

docker compose exec jobmanager bash -c "/opt/flink/bin/sql-client.sh embedded -f /dev/stdin" < batch.sql

The job finishes when all rows are written.

Read the data back

Create the read query — the filesystem connector scans the prefix:

read.sql

CREATE TABLE readings (
  id INT,
  payload STRING
) WITH (
  'connector' = 'filesystem',
  'path' = 's3://my-bucket/flink-out/',
  'format' = 'csv'
);

SET 'sql-client.execution.result-mode' = 'TABLEAU';

SELECT * FROM readings;

docker compose exec jobmanager bash -c "/opt/flink/bin/sql-client.sh embedded -f /dev/stdin" < read.sql

+----+-------------+--------------------------------+
| op |          id |                         payload |
+----+-------------+--------------------------------+
| +I |           1 |                           alpha |
| +I |           2 |                           bravo |
| +I |           3 |                         charlie |
| +I |           4 |                           delta |
| +I |           5 |                            echo |
+----+-------------+--------------------------------+

Verify objects in RustFS

List the prefix through the bucket-initializer image:

docker compose run --rm --entrypoint /bin/sh create-bucket -c \
  '/usr/bin/rc alias set rustfs http://rustfs:9000 "$RUSTFS_ACCESS_KEY" "$RUSTFS_SECRET_KEY" >/dev/null && /usr/bin/rc ls rustfs/my-bucket/flink-out --recursive'

[2026-09-21 01:34:52]       41 B flink-out/part-f759f9e8-3d1b-46a1-a92e-53e9b727e831-task-0-file-0

You can also browse the prefix in the RustFS Console:

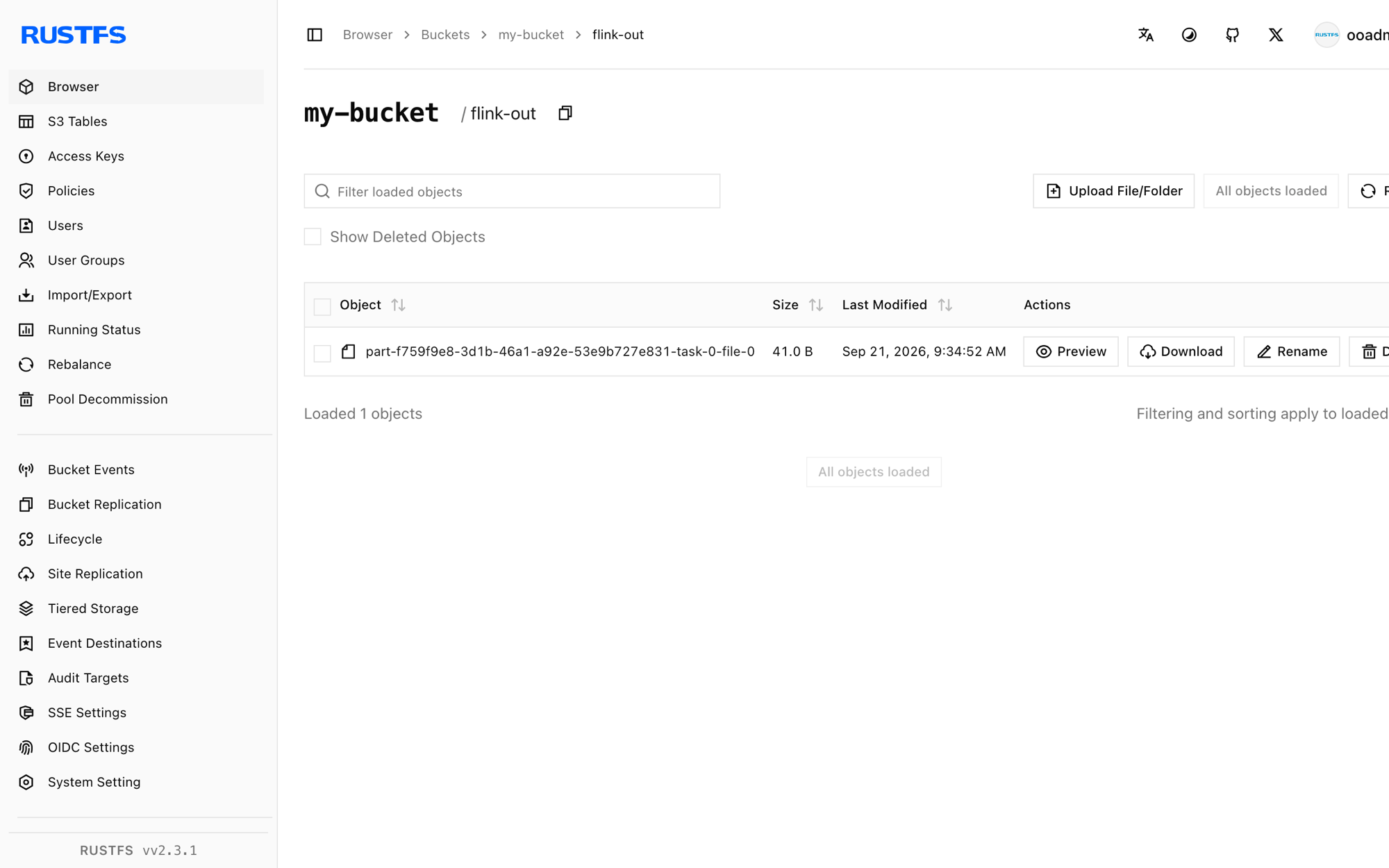

The Flink output file stored in the RustFS Console

Use RustFS S3 Tables

RustFS S3 Tables provides a built-in Apache Iceberg REST catalog, so Flink can treat a table bucket as a managed Iceberg warehouse while the data stays in RustFS. Enable a table bucket and point the Flink Iceberg connector's REST catalog at RustFS as described in S3 Tables: the REST catalog URI is http://<rustfs-host>:9000/iceberg, the warehouse is the bucket name, and both catalog requests (AWS Signature Version 4, signing name s3) and S3 file access use path-style addressing.

Per the S3 Tables support matrix, validate the exact Flink and Iceberg versions you deploy against the catalog before adopting this path in production.

Stop or reset the stack

Stop the containers while keeping the RustFS data volume:

docker compose down

To delete the stored files and start from an empty RustFS volume, explicitly include --volumes:

docker compose down --volumes

Troubleshooting

No AWS Credentials provided / AccessDenied on writes

The S3 plugin reads its credentials from the s3.* properties in flink-conf.yaml. Confirm that s3.access-key, s3.secret-key, s3.endpoint, and s3.path-style-access are present in FLINK_PROPERTIES for both the JobManager and the TaskManager, and that the plugin jar exists in /opt/flink/plugins/s3fs/ on each.

Review S3 compatibility notes before adopting additional S3 operations.
Create dedicated production credentials with Access Key Management.
Follow the Apache Flink documentation for filesystem connector options such as partitioning and compaction.
